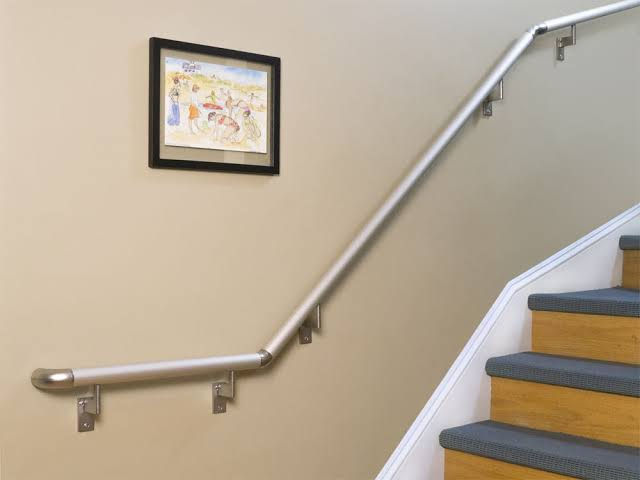

Promenaid Modular Handrail System
The Promenaid Modular Handrail System is a highly versatile, professional-grade safety solution that combines sleek, modern aesthetics with ultimate structural strength. Engineered for quick and painless installation, Promenaid features a patented continuous-channel design with unique Sprocketlock™ and pivoting wall brackets that snap into the railing and lock with a simple 90-degree twist—allowing you to align brackets perfectly with wall studs without custom fabrication. Perfect for residential homes, commercial properties, hallways, and stairwells, these 1.6-inch round handrails provide an optimal, comfortable grip that exceeds all standard safety codes. Whether you need a rust-proof finish for an outdoor patio or a rich, genuine wood finish for an elegant interior entry, this fully customizable system adapts instantly to any slope, corner, or custom angle on-site.
Technical Specifications
Railing Diameter: 1.6 inches (40 mm) round profile (ergonomically optimized for full graspability)
Weight Support: Each individual bracket is rated to support up to 500 lbs (226 kg) of force, exceeding standard building codes
Material Core: High-strength, structural extruded aluminum core
Available Finishes:
Outdoor/Indoor: Endura anodized aluminum (Satin Black, Architectural Bronze, Champagne, and Silver)
Indoor Only: TrueWood™ technology (genuine Oak or Walnut veneer permanently bonded to the aluminum core)
Bracket Technology: Die-cast pivoting and Sprocketlock™ brackets that slide anywhere along the continuous underside channel
Custom Angular Mobility: Articulating Sprocketlock™ universal bends allow custom multi-directional corner joints to adjust smoothly using a standard Allen key
Compliance: Fully compliant with ADA (Americans with Disabilities Act) and strict regional commercial/residential building safety codes
Maintenance Requirement: Zero maintenance; anodized metal finishes will never flake, rust, chip, or peel, and TrueWood™ profiles will not warp
Optional Enhancements: Compatible with Channelux™ flush-fitting, dimmable LED lighting modules that snap directly into the underside channel without complex wire fishing
