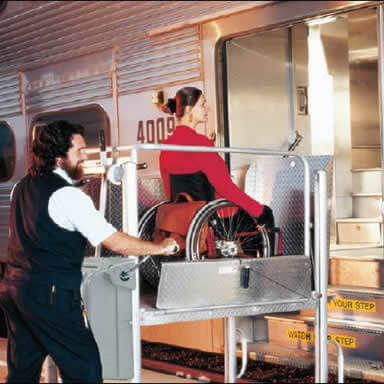

Adaptive Engineering Mobilift CX Portable Wheelchair Lift
The Adaptive Engineering Mobilift CX is a highly versatile, manually operated portable wheelchair lift designed to provide instant handicap accessibility to stages, outdoor bleachers, elevated platforms, and porches. Ideal for historical buildings, schools, churches, and temporary event venues, the Mobilift CX serves as an economical, reversible solution where permanent ramps or structural modifications are impractical, restricted, or too costly. Because it is entirely manually powered, it operates completely independent of electricity, batteries, or hydraulic systems. This makes it incredibly reliable, virtually maintenance-free, and perfectly suited for emergency evacuation scenarios during power outages. Built with a compact footprint, it requires only minimal force to roll and can be easily moved by a single person or transported in the back of a standard pickup truck.
Technical Specifications
Weight Capacity: 600 lbs (273 kg) standard; factory load-tested up to 3,000 lbs for maximum structural safety
Maximum Lifting Height: Up to 60 inches (1.52 m)
Lifting Speed: Reaches maximum 60-inch height in approximately 20 seconds
Drive System: High-efficiency manual hand-crank drive (no power, batteries, or hydraulics required)
Crank Effort Required: Only 5 lbs of force required to lift a 150 lb load; 11 lbs of force to lift a 300 lb load
Maneuverability: Requires only 4 lbs of rolling pressure to move on a hard, level surface
Platform Size: 34" x 56" (Accommodates large wheelchairs and mobility scooters)
Total Unit Weight: Approximately 268 lbs (122 kg)
Storage Footprint: Compact design occupying only 38" x 72" of floor space
Operating Temperature Range: Engineered for extreme weather performance from -50°F to +130°F (-45°C to +54°C)
Construction Materials: Heavy-duty, weather-resistant aluminum and stainless steel
Safety Features: Load-activated automatic drum brakes, fail-safe parking brakes, automatic self-leveling platform, locking safety cable to prevent unauthorized use, and integrated pictogram operating instructions
Customization Options: Left-hand side cranking configurations and adjustable bridge ramps of varying lengths to reach over steps or obstacles
