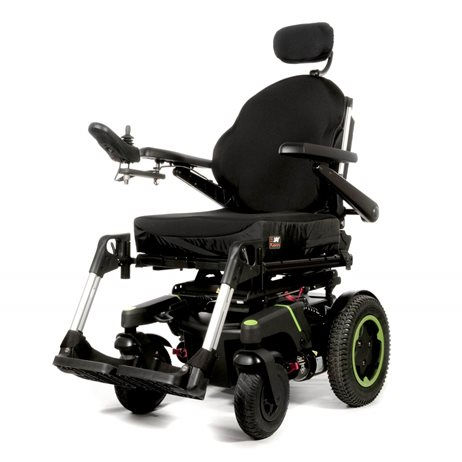

Sunrise Medical Quickie Power Wheelchair Platform

Sunrise Medical Quickie Power Wheelchair Platform

The Sunrise Medical Quickie Series is a high-performance, complex rehab power wheelchair platform engineered to deliver elite outdoor performance, indoor maneuverability, and customizable power positioning. Utilizing advanced drive configurations—including mid-wheel, rear-wheel, and front-wheel designs—built on a patented SpiderTrac or All-Wheel Independent Suspension system, this platform keeps all wheels firmly on the ground while absorbing shocks over curbs and uneven terrain. The Quickie series features the advanced SEDEO seating system for automated pressure relief and postural support, alongside C-Me technology, which allows users to elevate the seat up to 12 inches while driving at full walking speed for enhanced social inclusion and independent high-counter reach.

Key Points

  • Advanced Drive Configurations: Available in Mid-Wheel Drive for the tightest indoor turning, Front-Wheel Drive for aggressive obstacle climbing, and Rear-Wheel Drive for high-speed tracking.

  • C-Me Seat Elevation: Enables up to 12 inches of power seat lift while allowing the user to drive at speeds up to 3 mph, facilitating eye-level social interactions and seamless transfers.

  • SpiderTrac Suspension: Features a patented, gas-cylinder-linked suspension geometry that cushions impacts, prevents forward pitch when descending curbs, and maintains traction on rough surfaces.

  • SEDEO Intelligent Seating: Combines adjustable postural support with highly smooth, automated mechanical recline that moves with the user's body to prevent friction and skin shear during positioning.

  • Smart Switch Control Integration: Features expandable electronics like the R-Net joystick system, offering high-resolution color screens, built-in Bluetooth/Infrared environmental controls, and customizable shortcut switches.

  • Heavy-Duty High-Torque Motors: Powered by dependable 4-pole commercial motors designed to sustain continuous acceleration, long battery range, and a heavy-duty weight capacity.

Technical Specifications

  • Base Platform Configurations: Quickie Q500, Q700, Q300 M Mini (Ultra-Narrow), and Q700 Up (Power Standing Series)

  • Drive Wheel Core System: 14" non-marking flat-free or pneumatic drive tires paired with heavy-duty solid caster assemblies

  • Maximum Driving Speed: Top tracking speeds up to 6 mph to 8 mph (drives up to 3 mph when fully elevated under C-Me)

  • Maximum Weight Capacity: 300 lbs (standard active units) up to 350 lbs (reinforced heavy-duty configurations)

  • Seating Width Dimensions: Fully adjustable, tool-free cushion rails scaling from 15 inches up to 22 inches

  • Seating Depth Dimensions: Sliding frame tracks customizable from 15 inches up to 22 inches

  • Power Seating Tilt Range: Smooth, electric weight-shifting tilt adjustable from 0° up to 30° or 50°

  • Power Seating Recline Range: Independent motor-driven backrest recline extending from 90° up to 150°

  • Power Standing Capability: Automated bi-angular standing configuration mechanism (exclusive to Q700 M/F Up series)

  • Battery Power Configuration: Dual 12V Group 24 or 34 (60Ah - 80Ah) deep-cycle batteries with a heavy-duty off-board charger
